OEM Candle Filter Cartridge and Filter Elements for Polymer Manufacturer, Companies

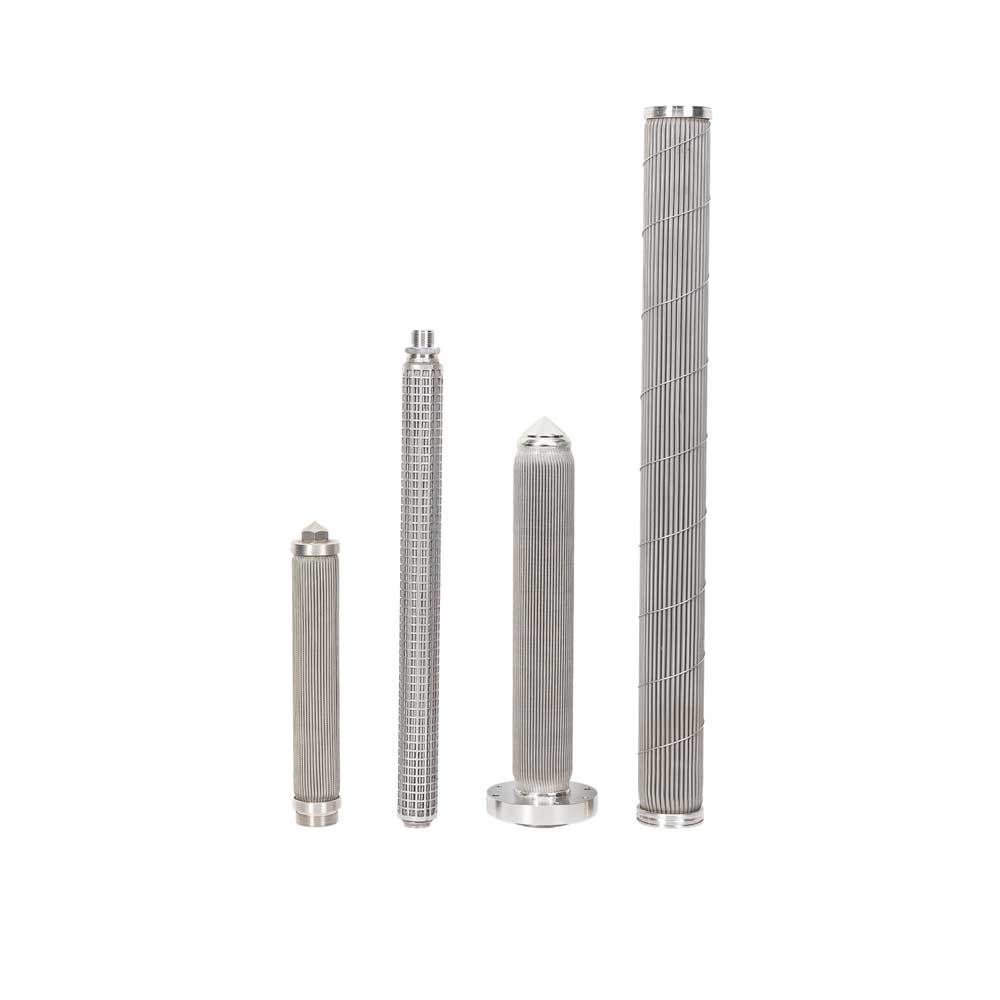

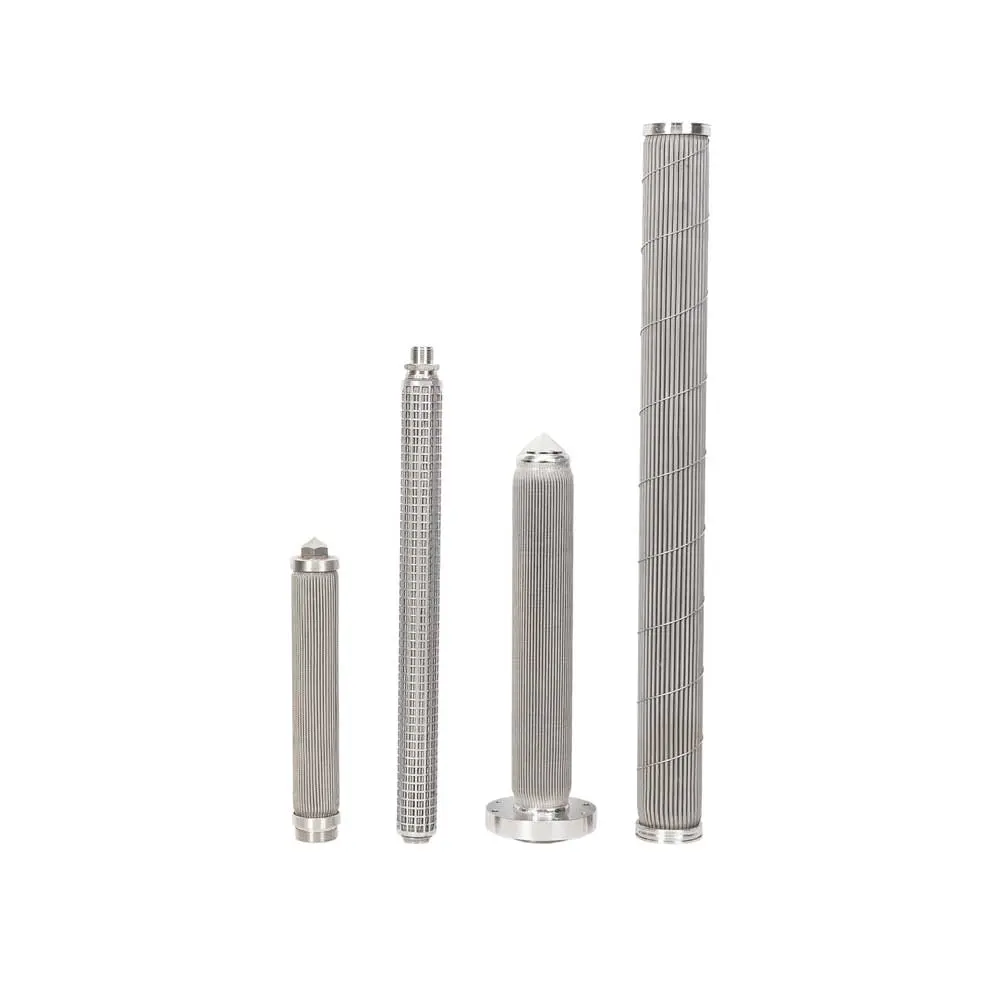

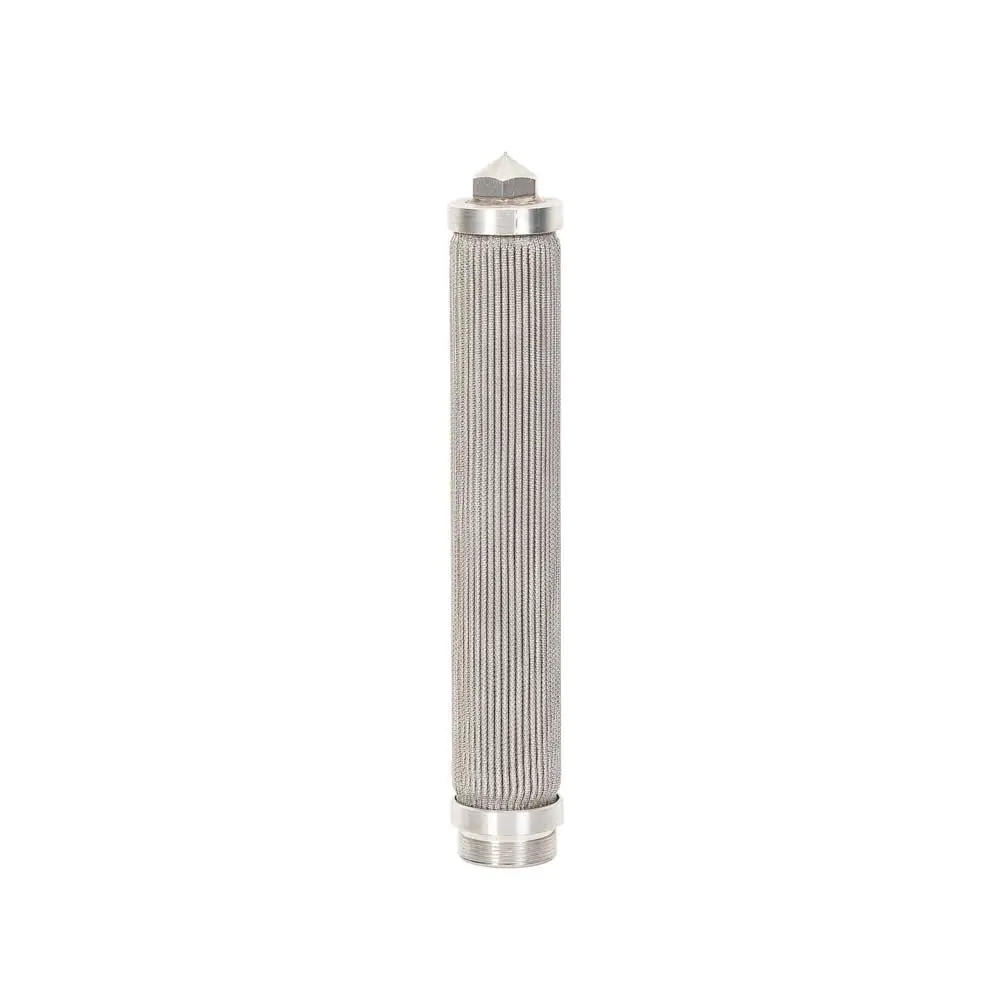

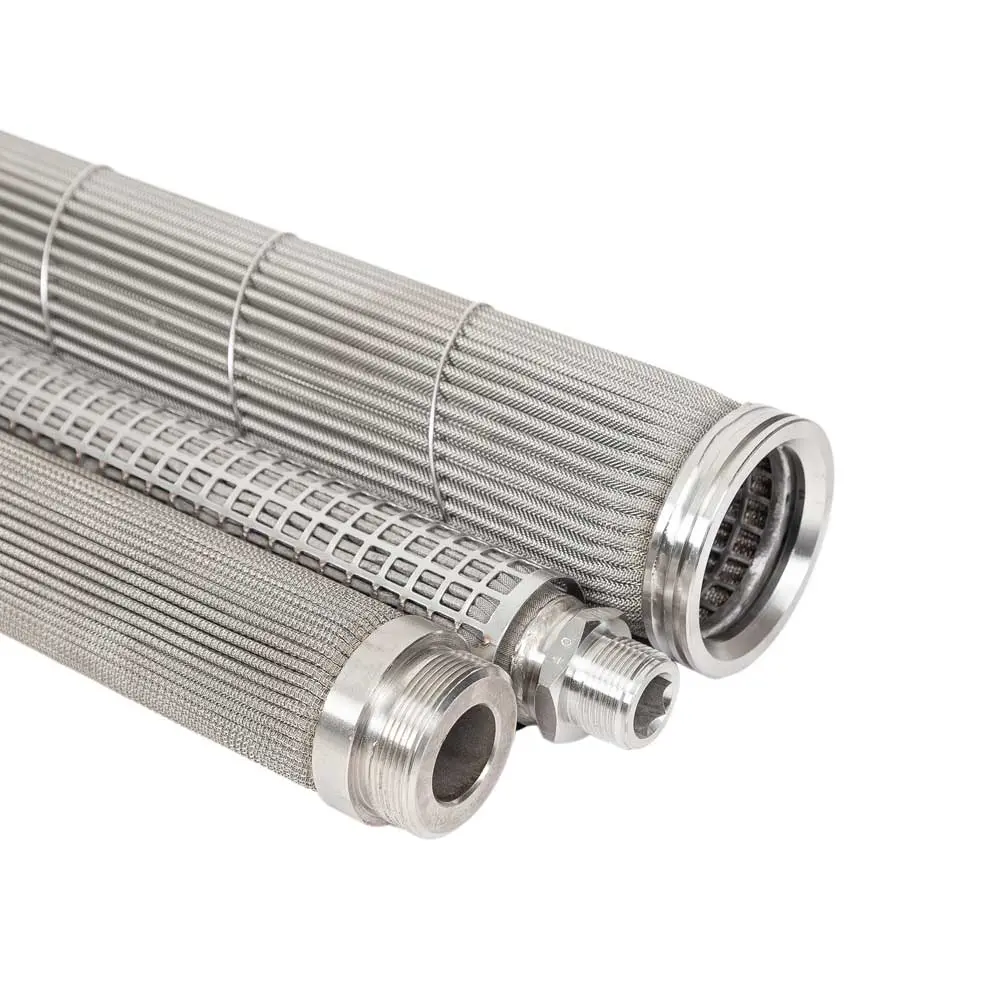

Candle Filter Elements are groups of metal pleated filter elements fixed with candle holders to work as an candle-like filtration unit. Porous metal filters for high-temperature, high pressure polymer processing applications. Designed to remove the impurities ( such as titanium dioxide, gels and other solid residues ) of the polymer melt in chemical fiber, textile and plastics industries. Suitable for monomer, pre-polymer or polymer filter systems.These filter elements are typically tubular and made of stainless steel mesh or stainless steel sintered mesh with a cap on the bottom and a threaded connector on the top (or vice versa) that connects to the core end. The outer surface of some tubes is made of perforated metal sheet, expanded metal, sintered metal or porous ceramic to support the filter media.

Send Inquiry

Product Description

Description

The melt filter element is installed in the extrusion line, where the polymer melt is forced through the filter to remove impurities. The candle filter element is placed inside the filter housing (housing). It is a compact device that can typically hold 1-20 candles, depending on the size of the filter. The filter element is arranged vertically in the pressure vessel to filter liquids with low solid content. The candle filter allows high productivity, easy bottom sediment discharge.

The main filter layer of Pleated Filter mainly uses two materials: stainless steel wire mesh and stainless steel sintered fiber. Stainless steel wire mesh is woven from stainless steel wire. Its pleated filter has the characteristics of smooth pores, easy cleaning, high temperature resistance, corrosion resistance, no wire mesh falling off, and long filtration cycle. Stainless steel sintered fiber is a porous deep filter material made of stainless steel fibers sintered at high temperature. Its pleated filter has the characteristics of high porosity, good air permeability, strong dirt holding capacity, and strong regeneration ability.

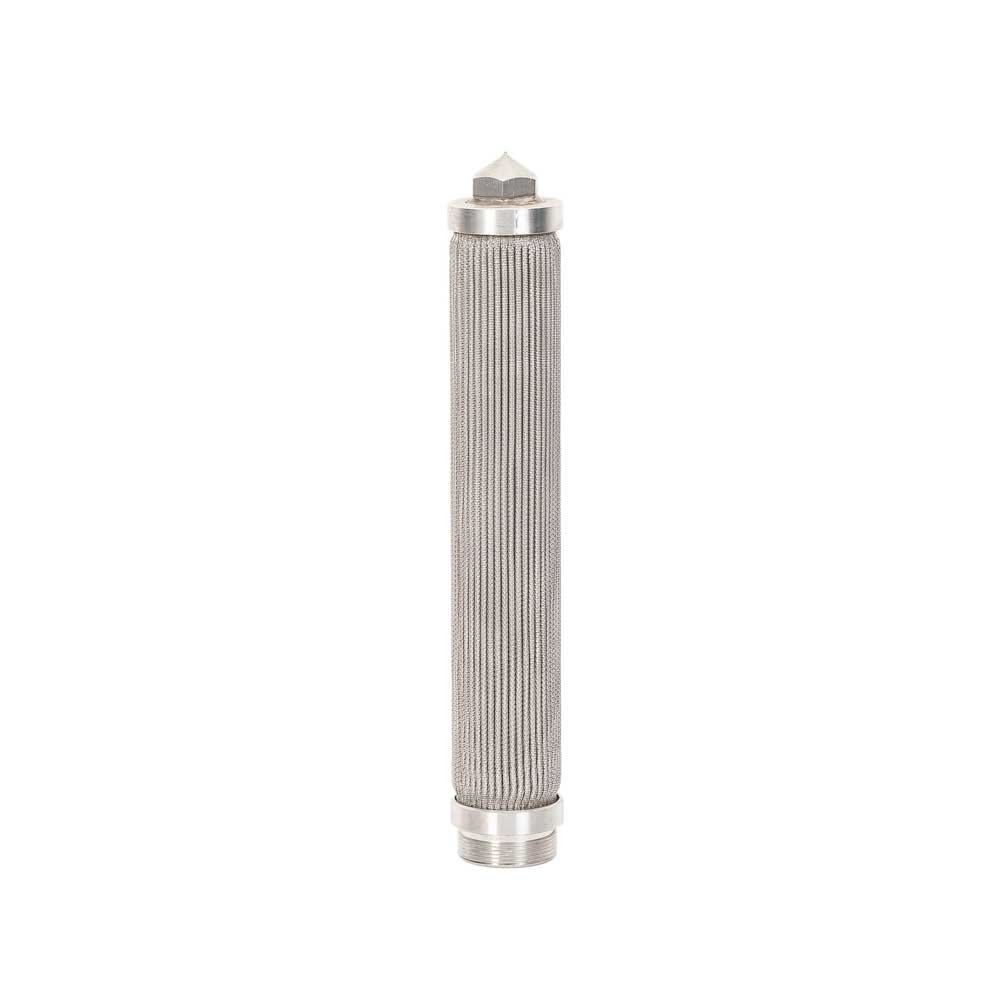

Candle-Filter-Cartridge-and-Filter-Elements-for-Polymer1

Candle Filter Elements and Filter Media

Filter Raw Material	SUS304/316L
Filter Media	Metal sintering mesh, stainless steel wire mesh
Filtration Rating	1-200 Micro
Filter Length	16-60 inch (406.4-1524mm)
Working Temp.	≤350℃
Allowed Pressure Difference	10 bar/14psi
Connector Type	222/226/215/M36/M28/M24/M22/M20

Note: We can provide high quality polymer pleated candle filters to meet your specific requirements of polymer melt filtration applications.

SUS Screen Mesh Polymer Filter Element for Chemical Fiber Industry

Stainless Wire Mesh for Polymer Filter Element
Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Sq. Ft
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Sq. Ft
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30	4.4
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8
635X635	0.0008	0.0203	0.0008	0.0203	25	2.63

Application Areas

1. Petrochemical: Refining, chemical production and separation and recovery of intermediate products.

2. Metallurgy: Used for filtration of hydraulic systems of rolling mills and continuous casting machines.

3. Textile: Purification and uniform filtration of polyester melt during the drawing process.

4. Electronics and Pharmaceuticals: Pre-treatment and filtration of reverse osmosis water and deionized water, pre-treatment and filtration of cleaning fluid and glucose.

5. Thermal Power and Nuclear Power: Purification of lubrication systems, speed control systems, bypass control systems of gas turbines and boilers, purification of water supply pumps, fans and dust removal systems.

Quality Control

Every polymer filter element is tested by bubble-point and air flow method before shipment to ensure product integrity and performance. Test certificate is offered with each lot of shipment.
All polymer melt filter elements are laser marked for identification and easy tracing at bottom of end fittings. According to this, we can provide reliable after sales service.
Candle elements are made from 304L or 316L stainless steel filter media. Ideal for repeated cleaning and long term uses. Suitable for high temperatures uses and highly corrosive applications.

Frequently Asked Questions (FAQ)

What materials are used in these melt filter elements?

The filter elements are made using high-grade SUS304 or SUS316L stainless steel wire mesh and stainless steel sintered fiber media, providing optimal corrosion and thermal resistance.

What is the maximum operating temperature for these filter elements?

These candle filter elements can withstand high-temperature environments with a working temperature of up to ≤350℃.

Can polymer candle filter elements be cleaned and reused?

Yes, constructed from durable stainless steel (304L/316L), they are specifically designed for repeated cleaning, regenerative processes, and long-term service cycles.

What filtration ratings and lengths are available?

The filtration ratings range from 1 to 200 microns, with standard lengths available between 16 to 60 inches (406.4mm to 1524mm), along with custom specification options.

How is product quality ensured before shipment?

Every element undergoes rigorous bubble-point and air flow testing before dispatch. Each lot comes with a test certificate and unique laser marking on end fittings for full traceability.
