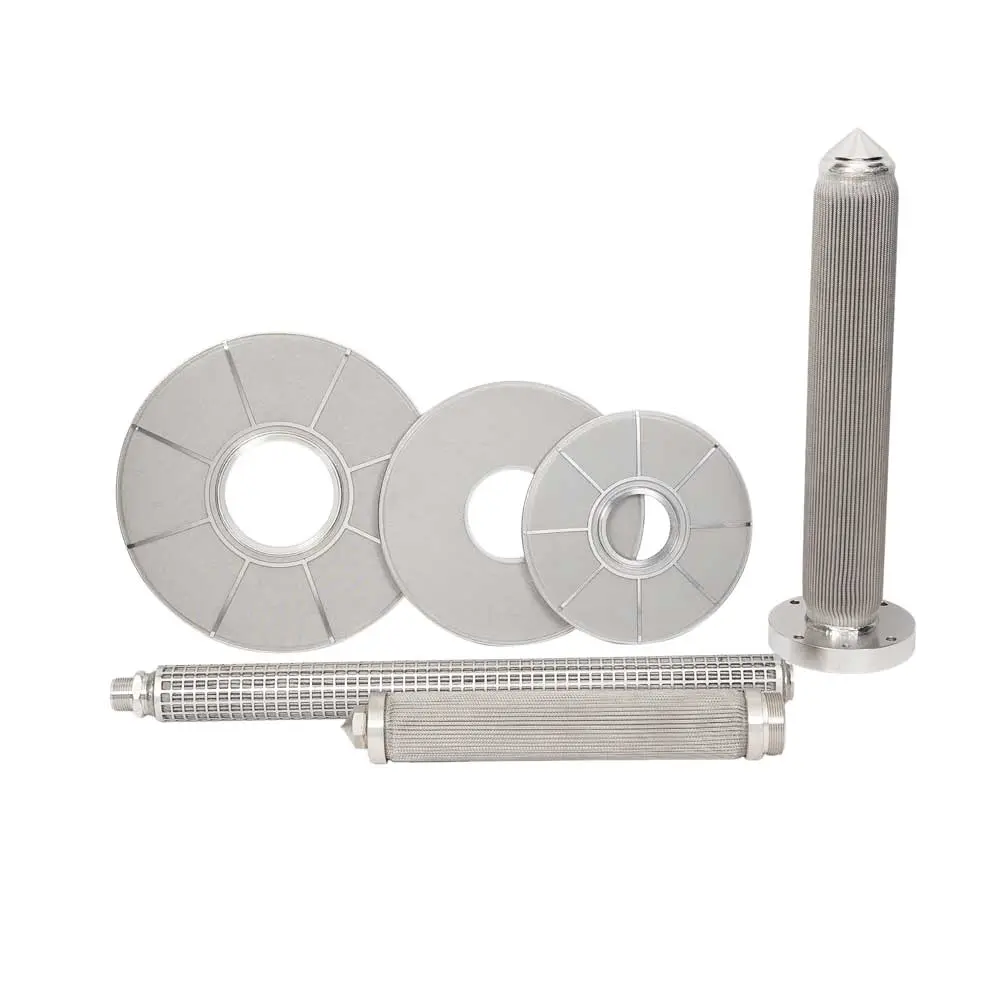

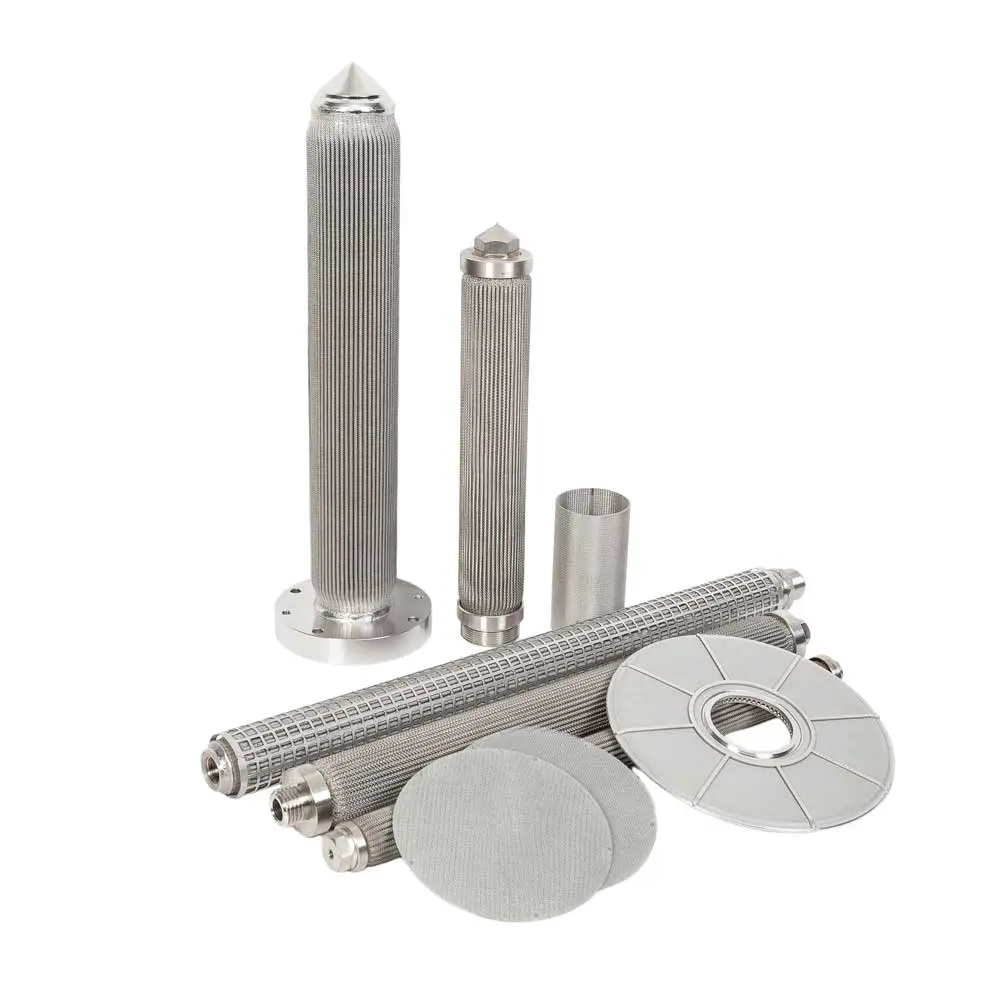

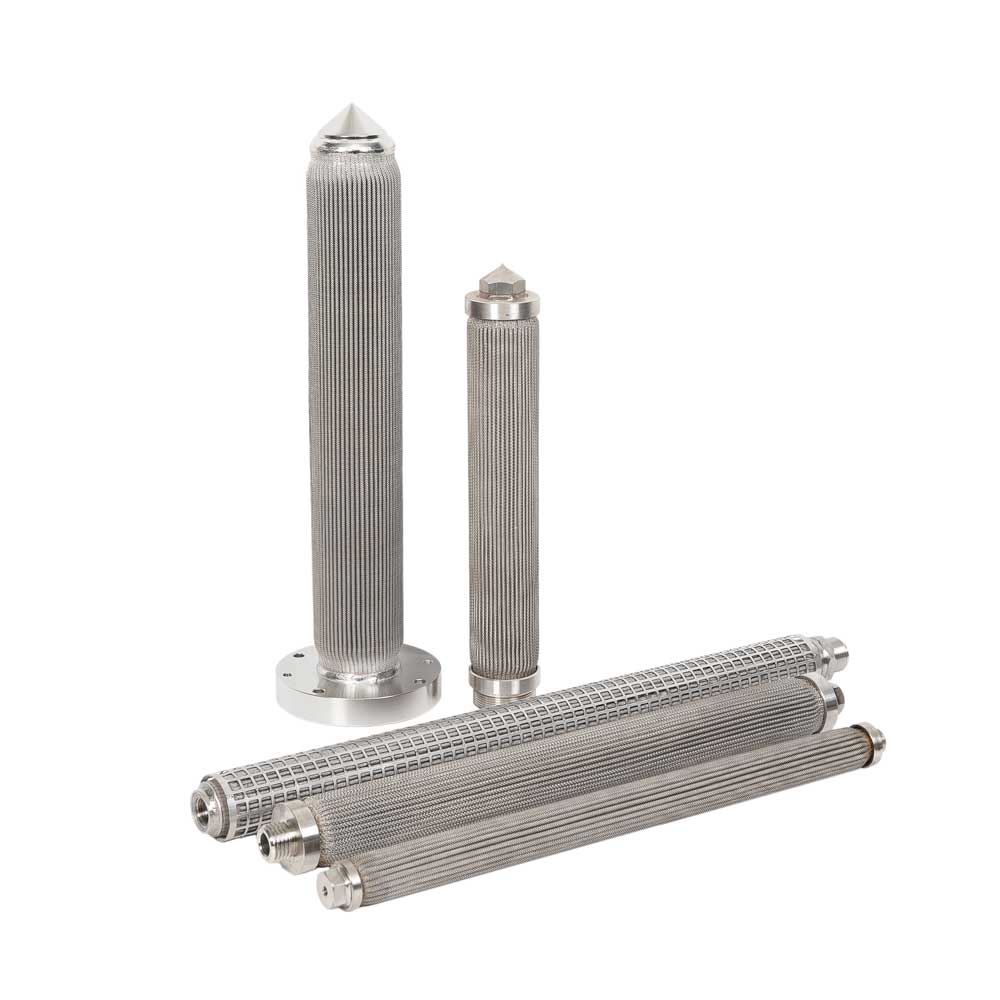

The construction of the CPF candle filter is a testament to engineering precision. At their core, is the polymer filter element, a vital part engineered to efficiently trap contaminants and impurities. These filters bear a resemblance to candles, and are crafted from high-quality materials which are capable of withstanding the extreme temperatures and pressures encountered in polymer manufacturing. Crafted from materials like sintered metal or ceramics, the polymer filter element forms the foundation of all CPF candle filters. This core houses an intricate network of channels, forming a sophisticated filtration pathway.
The term polymer candle filter signifies precision and excellence in ensuring the purity of polymer products. CPF candle filters operate as polymer melt flows through them. Along this complex path, contaminants are captured, leaving behind only the pure polymer. It's a process that guarantees the final polymer product meets the strictest quality standards.
The main filter layer of Pleated Filter mainly uses two materials: stainless steel wire mesh and stainless steel Sintered fiber. Stainless steel wire mesh is woven from stainless steel wire. Its pleated filter has the characteristics of smooth pores, easy cleaning, high temperature resistance, corrosion resistance, no wire mesh falling off, and long filtration cycle. Stainless steel sintered fiber is a porous deep filter material made of stainless steel fibers sintered at high temperature. Its pleated filter has the characteristics of high porosity, good air permeability, strong dirt holding capacity, and strong regeneration ability.
| Filter Raw Material | SUS304/316L |
| Filter Media | Metal sintering mesh / stainless steel wire mesh |
| Filtration Rating | 1-200 Micro |
| Filter Length | 16-60 inch (406.4-1524mm) |
| Working Temp. | ≤350℃ |
| Allowed Pressure Difference | 10 bar/14psi |
| Connector Type | 222/226/215/M36/M28/M24/M22/M20 |
| Stainless Wire Mesh for Polymer Filter Element | ||||||
|---|---|---|---|---|---|---|
| Mesh/Inch | Wire Diameter | Aperture | Open Area (%) | Weight (LB) / 100 Sq. Ft | ||
| Inch | MM | Inch | MM | |||
| 1x1 | 0.08 | 2.03 | 0.92 | 23.37 | 84.6 | 41.1 |
| 2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 | 51.2 |
| 3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 |
| 4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 |
| 4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 | 57.6 |
| 5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 |
| 6X6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 |
| 8X8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 |
| 10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 | 41.2 |
| 10X10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
| 12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 |
| 12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 57.2 | 31.6 |
| 14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
| 14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 51 | 37.2 |
| 16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | 34.8 |
| 20X20 | 0.02 | 0.508 | 0.03 | 0.76 | 36 | 55.2 |
| 20X20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 | 34.4 |
| 24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 | 31.8 |
| 30X30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 | 34.8 |
| 30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 | 29.4 |
| 30X30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 | 16.1 |
| 35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | 29 |
| 40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 | 27.6 |
| 50X50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 | 28.4 |
| 50X50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 | 22.1 |
| 60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | 23.7 |
| 60X60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | 20.4 |
| 70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 | 20.8 |
| 80X80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 | 23.2 |
| 80X80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 | 16.9 |
| 90X90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 |
| 100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
| 100X100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 | 11 |
| 100X100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 |
| 110X110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
| 120X120 | 0.0037 | 0.094 | 0.0064 | 0.1168 | 30.7 | 11.6 |
| 150X150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 | 7.1 |
| 160X160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 | 5.94 |
| 180X180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | 6.7 |
| 200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | 6.2 |
| 250X250 | 0.0016 | 0.0406 | 0.0024 | 0.061 | 36 | 4.4 |
| 270X270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 | 4.7 |
| 300X300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 | 3.04 |
| 325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 | 4.4 |
| 400X400 | 0.001 | 0.0254 | 0.0015 | 0.37 | 36 | 3.3 |
| 500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 | 3.8 |
| 635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 | 2.63 |
Our CPF candle filter elements are crafted from high-grade materials such as SUS304 and SUS316L stainless steel wire mesh, sintered metal fiber, or ceramics, ensuring exceptional durability under extreme heat and pressure.
The candle filter elements are designed to operate under working temperatures up to ≤350℃ and can handle an allowed differential pressure of up to 10 bar (14 psi).
Stainless steel wire mesh offers smooth pores, easy cleaning, and high temperature resistance. Sintered fiber media features high porosity, superior dirt-holding capacity, deep filtration capabilities, and excellent regeneration capability.
Yes, because they are constructed from high-grade 304L or 316L stainless steel, they can be repeatedly cleaned and regenerated for long-term usage, significantly reducing operational costs.
Every element undergoes rigorous bubble-point and air flow testing before shipment to verify structural integrity. A test certificate is included with each shipment lot, and end fittings feature laser-marked codes for complete traceability.
Yes, we provide custom polymer pleated candle filters tailored to your specific application needs, featuring customizable lengths (16-60 inches), filtration ratings (1-200 micro), and multiple connector options (222, 226, M36, M28, etc.).
