| Filter Raw Material | SUS304 / 316L |
|---|---|
| Filter Media | Metal sintering mesh / Stainless steel wire mesh |
| Filtration Rating | 1 - 200 Micron |
| Filter Length | 16 - 60 inch (406.4 - 1524mm) |
| Working Temp. | ≤ 350°C |
| Allowed Pressure Difference | 10 bar / 14psi |
| Connector Type | 222 / 226 / 215 / M36 / M28 / M24 / M22 / M20 |
| Diameter (MM) | Length (MM) | Suitable for Filtration Machine |
|---|---|---|
| Φ35 | 425 MM | PF2T-0.5B / PF2T-1.05B / PF2T-1.95B / PF2T-2.34B |
| Φ35 | 485 MM | PF2T-1.26B / PF2T-2.34B / PF2T-2.7B / PF2T-3.5B |
| Φ35 | 525 MM | PF2T-4.0B |
| Φ35 | 575 MM | PF2T-4.5B / PF2T-5.5B |
| Φ50 | 500 MM | PF2T-4.5B / PF2T-5.5B |

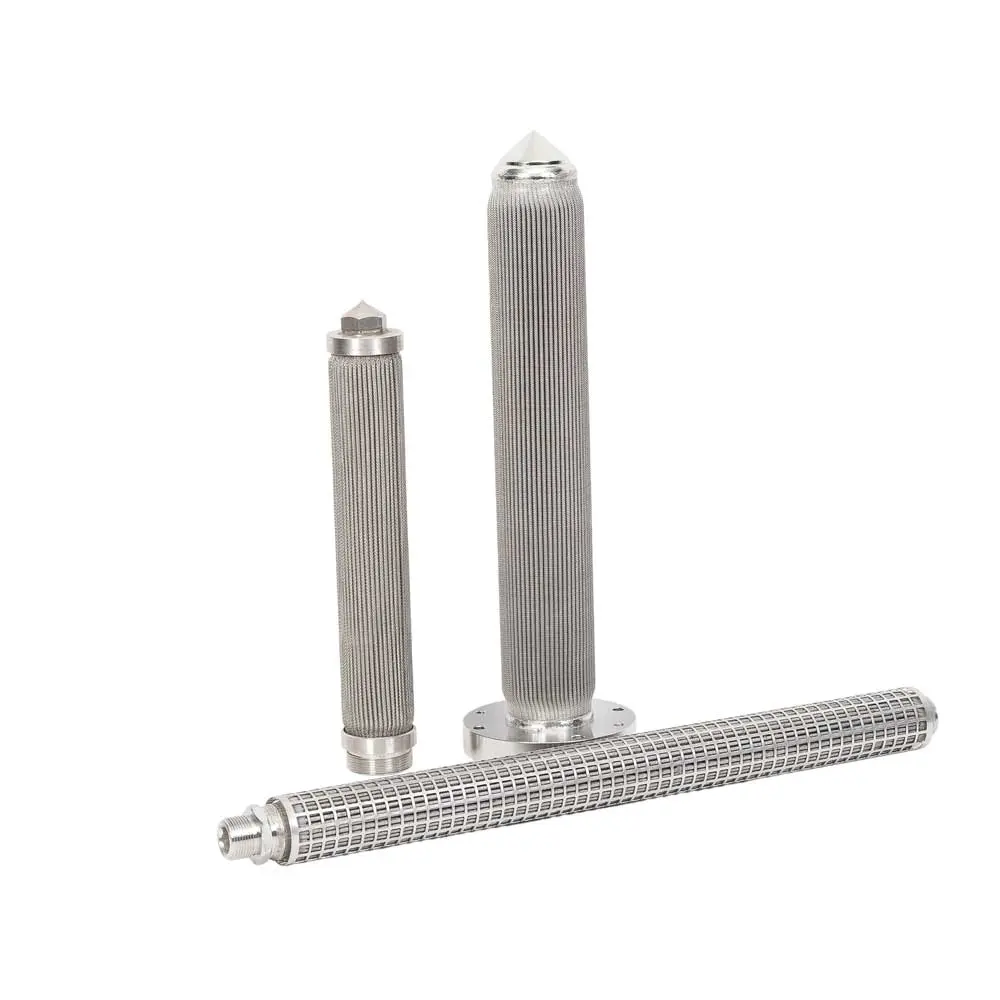

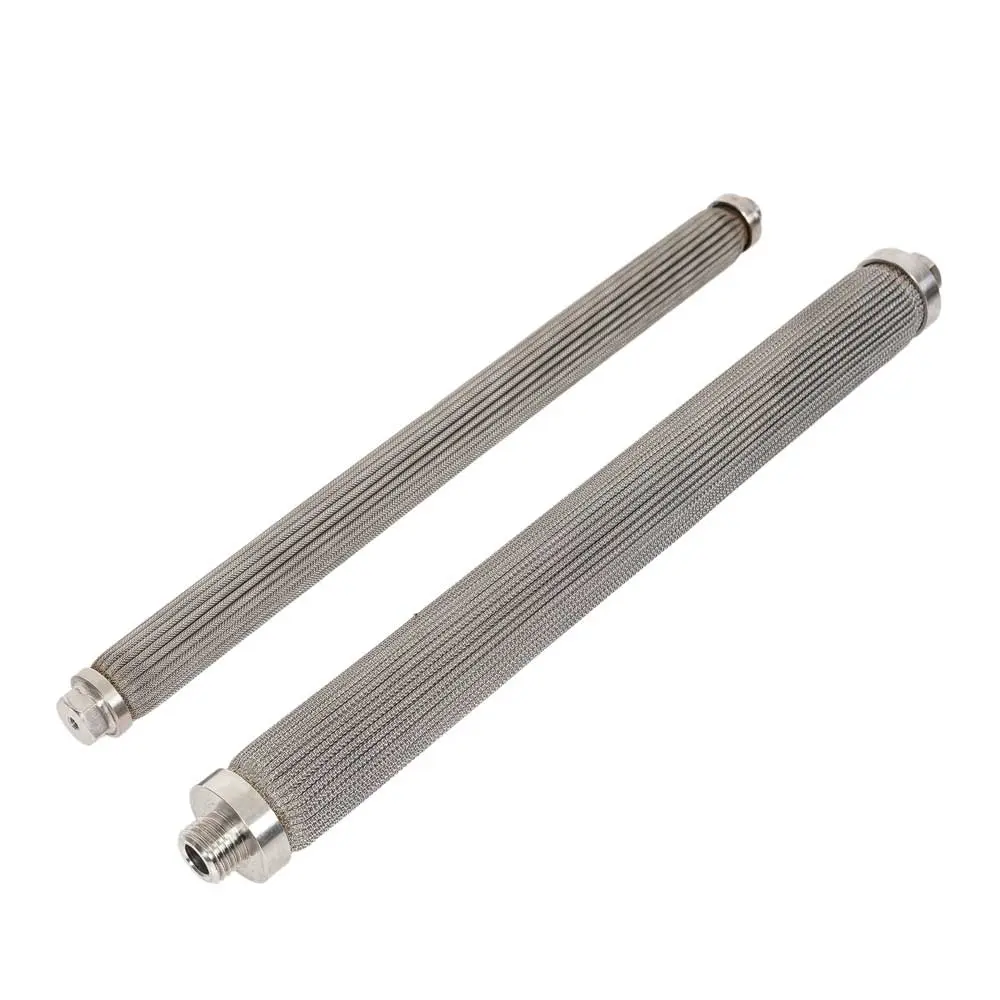

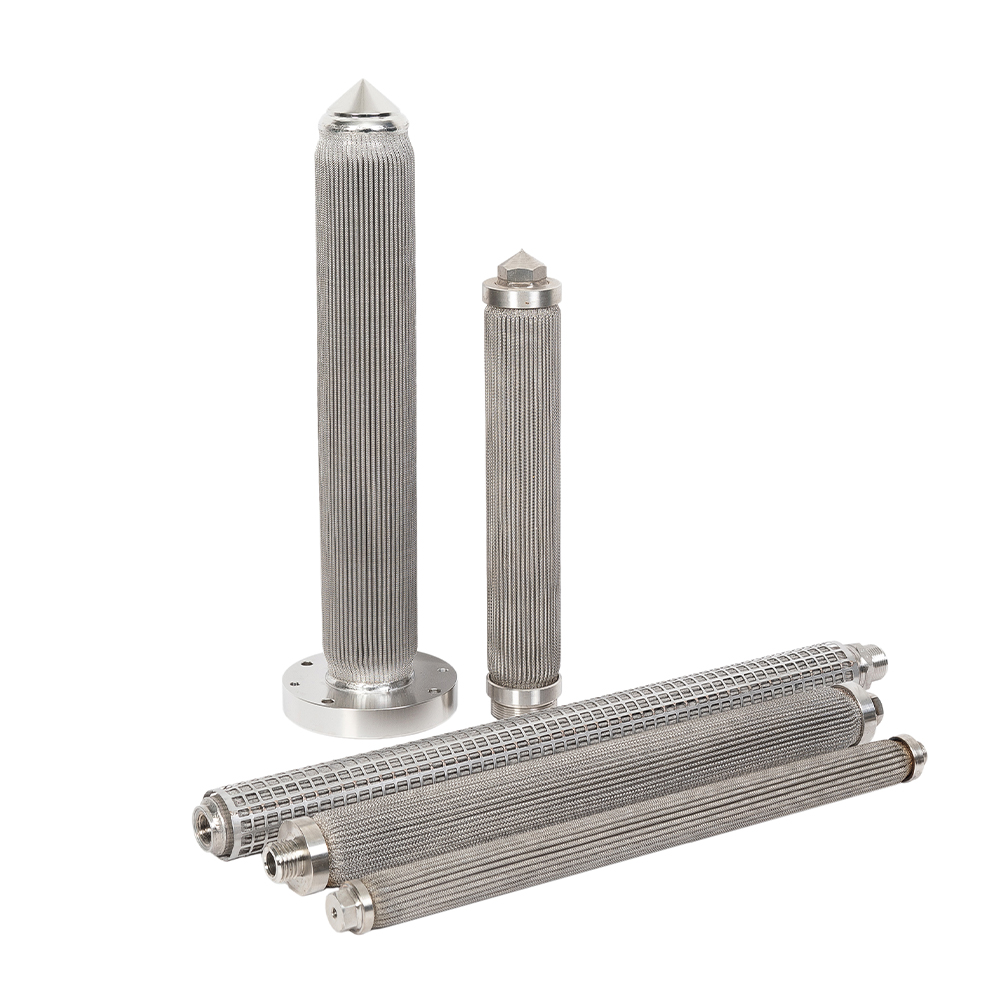

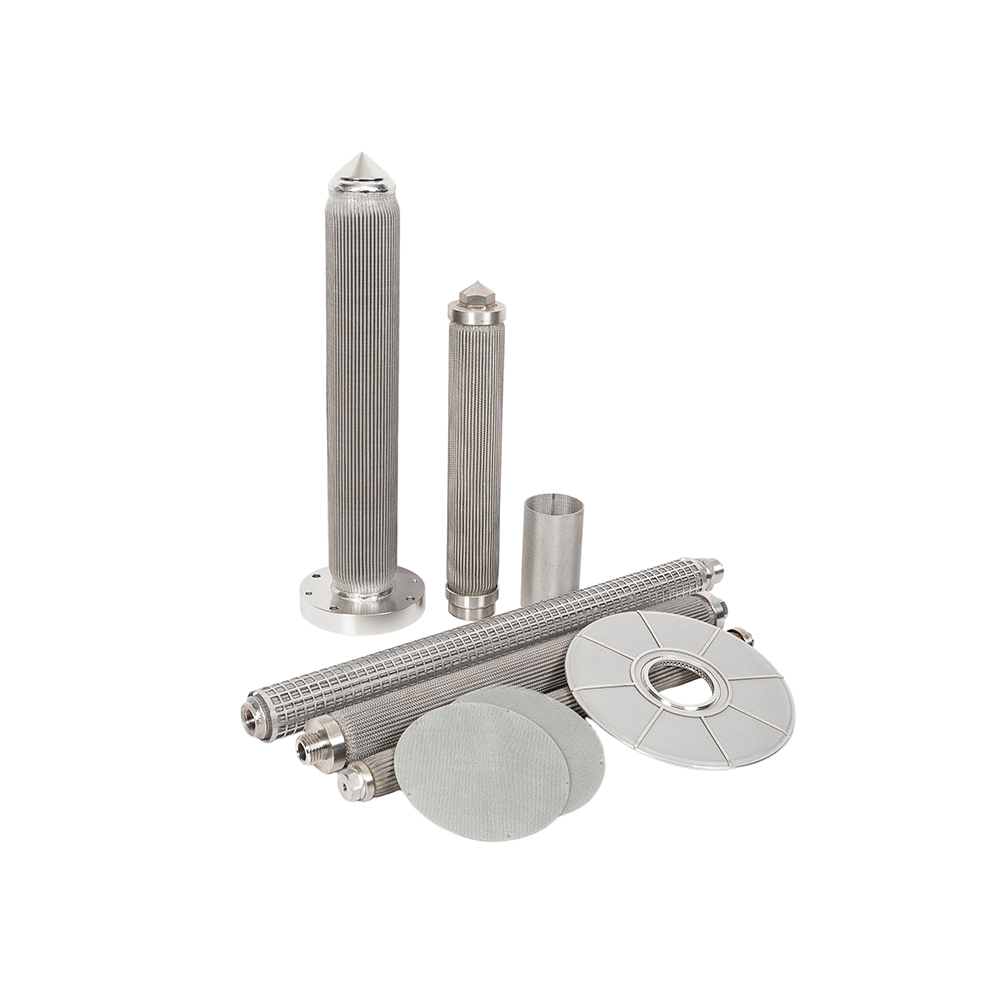

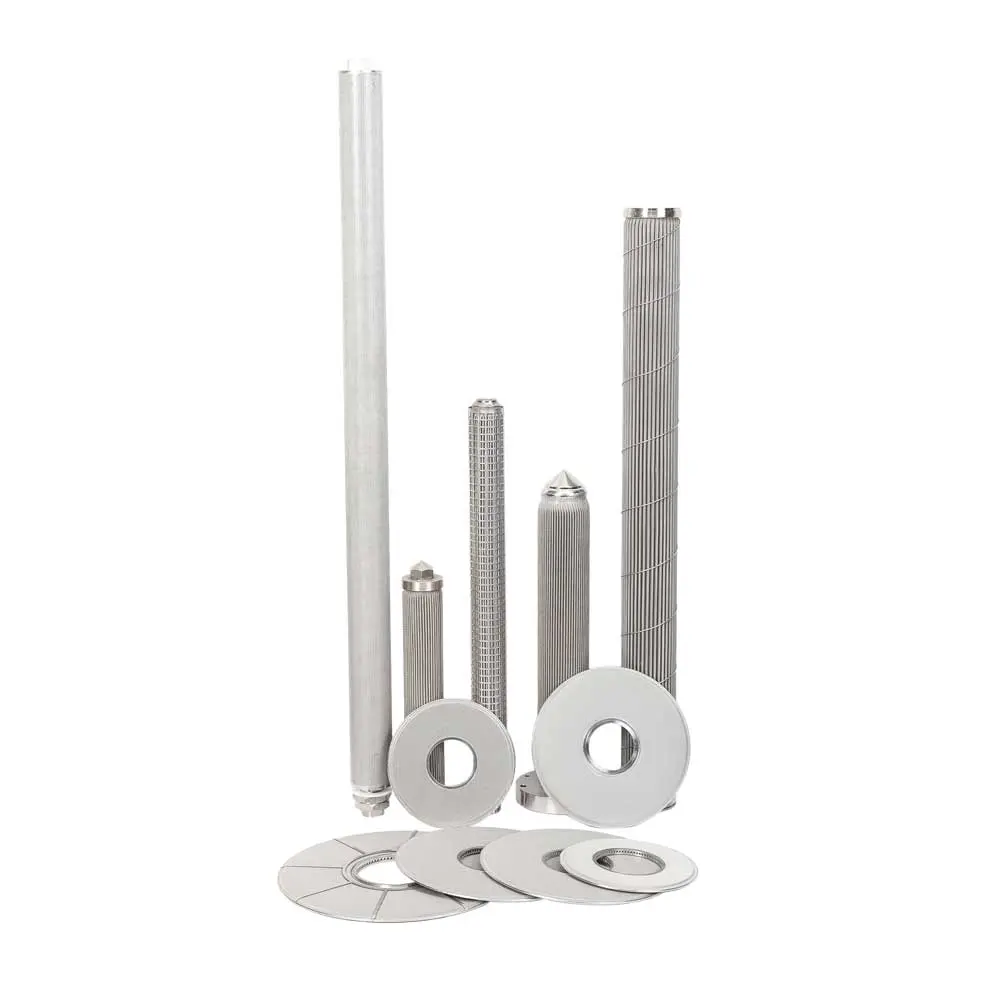

The melt filter element is installed in extrusion lines to filter out impurities from polymer melt before spinning, ensuring continuous operation, improved product quality, and protection for downstream machinery.
They are manufactured using high-grade SUS304 or SUS316L stainless steel, with media options including metal sintering mesh and stainless steel wire mesh for superior durability.
The folded/pleated filter design offers a filtration surface area that is 3 to 5 times larger than traditional cylindrical filters, allowing for greater dirt holding capacity and longer operation cycles.
Yes, these elements are built for high temperature and corrosion resistance, enabling them to be thoroughly cleaned and reused multiple times to reduce operating costs.
The main feature working temperature range is -60℃ to 500℃ (with typical continuous working temperatures up to ≤350℃ depending on media type), withstanding a maximum pressure differential of up to 10MPa (10 bar / 14psi allowed operational pressure difference).
Yes, custom high-quality polymer pleated candle filters can be tailored to meet specific industrial requirements, supporting standard connector types including 222, 226, 215, M36, M28, M24, M22, and M20.
